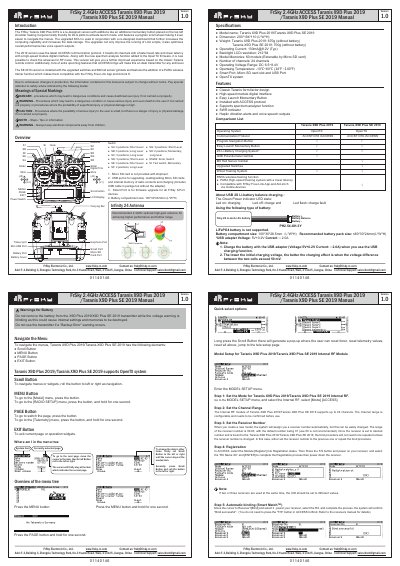

This manual introduces the operating methods of the Taranis X9D Plus 2019/Taranis X9D Plus SE 2019 transmitter.
The FrSky Taranis X9D Plus 2019 is a redesigned transmitter featuring an additional momentary button on the top left shoulder, a program scroll wheel, and an upgraded MCU for improved LUA script performance. It utilizes the latest ACCESS communication protocol with 24 channels, faster baud rates, lower latency, and includes spectrum analysis capabilities via OpenTX firmware.
The manual provides instructions on navigating the menu system using Scroll, MENU, PAGE, and EXIT buttons. It details how to configure the internal RF module for the ACCESS protocol, set channel ranges, manage receiver numbers, and perform automatic binding (Smart Match) with compatible receivers.
| Dimension | 200*194*110 (L*W*H) |
|---|---|
| Weight | 670g / 700g (without battery) |
| Operating Current | [email protected] (Typ) |
| Backlight LCD resolution | 212*64 |
| Model Memories | 60 models (Extenable by Micro SD card) |
| Number of channels | 24 channels |
| Operating Temperature | -10°C~60°C (14°F ~140°F) |
The transmitter supports the OpenTX system.
The recommended battery pack size is less than 80*30*24mm (L*W*H).
No, LiFePO4 batteries are not supported by this device.
