FrSky Delta 8 is the first multi-brand 2.4GHz receiver for the R/C market, allowing you all the flexibility gained from not being locked into a single brand.

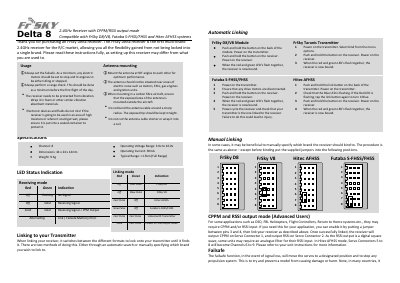

The FrSky Delta 8 is a multi-brand 2.4GHz receiver compatible with FrSky D8/V8, Futaba S-FHSS/FHSS, and Hitec AFHSS systems. It features CPPM and RSSI output modes for advanced applications like flight controllers and OSD. The manual provides instructions on automatic and manual linking, including specific steps for different transmitter brands.
| Channel | 8 |
|---|---|
| Dimensions | 44 x 24 x 14mm |
| Weight | 9.3g |
| Operating Voltage Range | 3.0v to 16.0v |
| Operating Current | 30mA |
| Typical Range | >1.5km (Full Range) |
It is compatible with FrSky D8/V8, Futaba S-FHSS/FHSS, and Hitec AFHSS systems.
Put a jumper between pins 3 and 4, then link the receiver as described in the manual.
No, this receiver does not support Futaba FASST.
Move the transmitter further away from the receiver's antenna to avoid overwhelming the sensitive RF front end.
