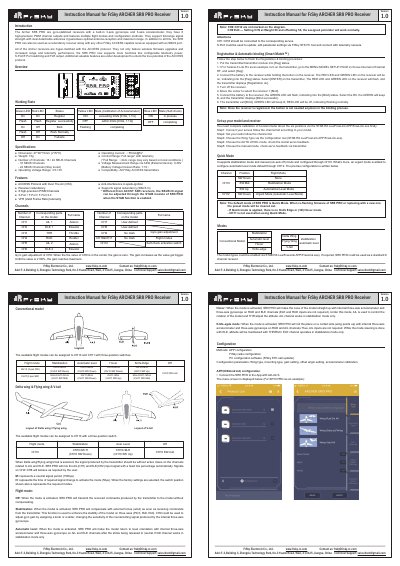

This is the user manual of ARCHER SR8 PRO receiver
The FrSky ARCHER SR8 PRO is a gyro-stabilized receiver featuring a built-in 3-axis gyroscope and 3-axis accelerometer. It provides 8 high-precision PWM channel outputs and supports multiple flight modes including Stabilization, Automatic Level, Hover, and Knife-Edge. The device supports the ACCESS protocol and can be used as a redundancy receiver alongside other FrSky ACCESS capable receivers equipped with an SBUS port.
| Dimension | 47*26*15mm (L*W*H) |
|---|---|
| Weight | 15g |
| Number of Channels | 8 high-precision PWM Channels |
| Operating Voltage Range | 3.5-10V |
| Operating Current | ≤55mA@5V |
| Control Range | Full range with telemetry |
| Voltage Measurement Range via AIN2 | 0-36V |
The SR8 PRO supports Stabilization, Automatic Level, Hover, Knife-Edge, and Conventional Model flight modes.
Yes, the SR8 PRO can be used as a redundancy receiver along with any other FrSky ACCESS capable receiver equipped with an SBUS port.
