FrSky Li-Po Voltage Sensor is a Li-Po voltage sensor designed for FrSky Smart Port system, which can measure cell Voltages as connected.

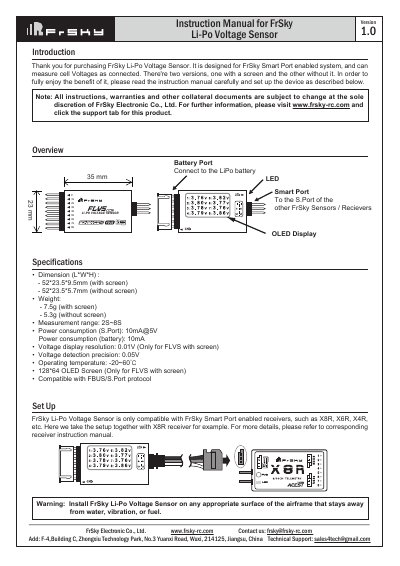

This manual provides instructions for the FrSky Li-Po Voltage Sensor (FLVS), available in versions with and without an OLED screen. The device is designed for FrSky Smart Port enabled systems to measure cell voltages of Li-Po batteries ranging from 2S to 8S. It features a 128*64 OLED display (on specific versions) and operates within a temperature range of -20 to 60°C.
| Measurement range | 2S~8S |
|---|---|
| Power consumption (S.Port) | 10mA@5V |
| Voltage display resolution | 0.01V |
| Voltage detection precision | 0.05V |
| Operating temperature | -20~60℃ |
| Screen resolution | 128*64 OLED |
The sensor is compatible with FrSky Smart Port enabled receivers such as X8R, X6R, and X4R.
A slowly flashing LED indicates FBUS is NO and S.Port is YES, while a quickly flashing LED indicates FBUS is YES and S.Port is NO.
Yes, all FrSky Smart Port enabled sensors can be daisy-chained with each other through their Smart Port.
