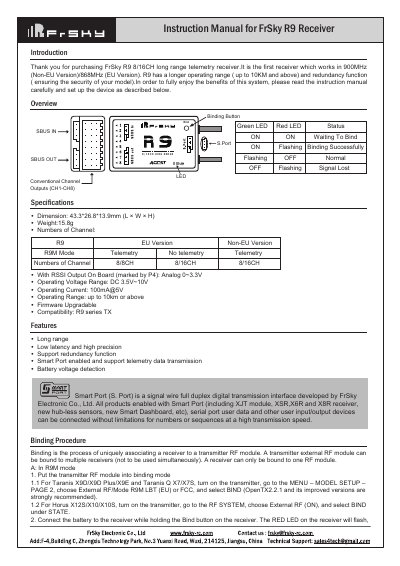

FrSky R9 8/16CH long range telemetry receiver supports 900MHz (non-EU version)/868MHz (EU version), has a longer operating range (up to 10KM and above) and redundancy function (ensuring the security of your model).
The FrSky R9 is a long-range telemetry receiver operating in 900MHz (Non-EU) or 868MHz (EU) bands, offering a range of up to 10km. It features redundancy functions, low latency, and supports Smart Port for high-speed data transmission. The device includes an on-board RSSI output and is compatible with various FrSky transmitters including the Taranis and Horus series.
| Operating Frequency | 900MHz (Non-EU)/868MHz (EU) |
|---|---|
| Operating Range | up to 10km or above |
| Dimensions | 43.3 x 26.8 x 13.9mm |
| Weight | 15.8g |
| Operating Voltage | DC 3.5V~10V |
| Operating Current | 100mA@5V |
Put the transmitter RF module into binding mode, then connect the battery to the receiver while holding the Bind button until the RED LED flashes.
The three available failsafe modes are No Pulse, Hold, and Custom.
Yes, the R9 supports telemetry data transmission via the Smart Port.
