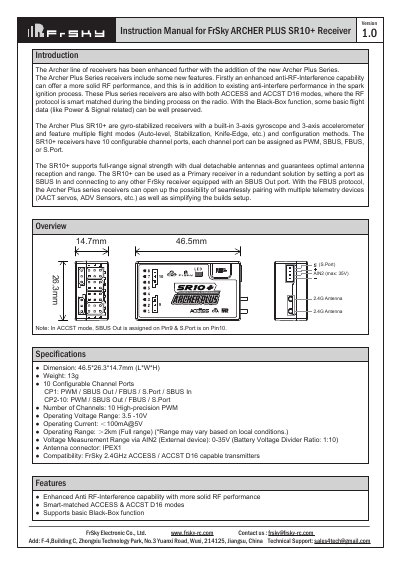

This document is the manual for FrSky Archer Plus SR10+ receiver. It introduces the functions, specifications and usage of the product.
The FrSky ARCHER PLUS SR10+ is a high-performance remote control receiver featuring enhanced anti-RF interference capabilities and smart-matched ACCESS & ACCST D16 modes. It includes basic Black-Box functionality to preserve flight data and supports multiple signal output methods including PWM, SBUS, FBUS, and S.Port across 10 configurable channels. This manual is written in Chinese.
| Dimensions | 46.5*26.3*14.7mm (L*W*H) |
|---|---|
| Weight | 13g |
| Number of Channels | 10 Configurable Channel Ports |
| Operating Voltage Range | 3.5 - 10V |
| Operating Current | <100mA@5V |
| Operating Range | >2km (Full range) |
Enter into the Model, select RF System, turn on the internal module, and click Register when it shows the Register ID.
Once registered, the button is not needed anymore in the binding process.
Place the device on a flat ground, move to the radio and enter the [SRX Calibration] tool, then follow prompts to calibrate all surfaces.
