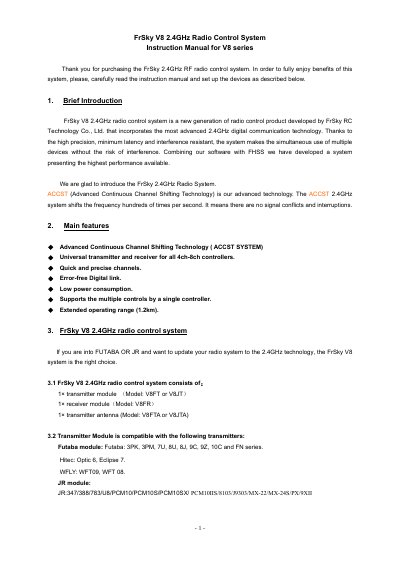

FrSky V8 2.4GHz radio control system instruction manual. The system uses 2.4GHz digital communication technology, which features high precision, low latency and anti-interference. It supports simultaneous use of multiple devices without interference risk.
This document is the instruction manual for the FrSky V8 2.4GHz Radio Control System, a product developed by FrSky RC Technology Co., Ltd. It details the system's features, including ACCST technology which shifts frequency hundreds of times per second to prevent interference and support multiple devices simultaneously.
| Operating Voltage Range (Receiver) | 4.8V-6V |
|---|---|
| Operating Current (Receiver) | 30mA |
| Specified Range | 1.2km |
| Resolution | 10bit |
| Latency | 22ms |
| Number of Channels | 8CH |
| Operating Voltage Range (Transmitter) | 6.0V-13.0V |
| Output Power | 60mW |
The specified range is 1.2km, though this can vary based on factors like flying environment and weather.
Place the model at least two feet above non-metal ground, orient antennas vertically/horizontally as described, and press and hold the 'F/S Range' button for 4 seconds.
The response of the model will slow down as a safety feature, indicating the user should fly closer to the transmitter.
