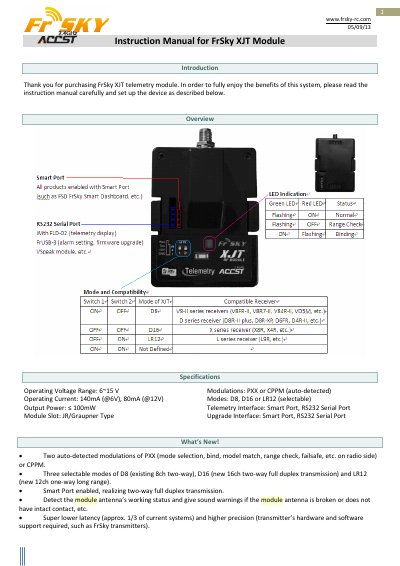

FrSky XJT module supports D8, D16 and LR12 modes. It also supports Smart Port and RS232 serial port for upgrade and telemetry data transmission.
The FrSky XJT Module is a telemetry device operating on voltages between 6V and 15V. It supports PXX or CPPM modulations and offers selectable modes including D8, D16, and LR12 for various transmission needs.
Key features include auto-detection of modulation types, antenna status monitoring with sound warnings, and low-latency two-way full duplex transmission via Smart Port.
| Operating Voltage Range | 6~15 V |
|---|---|
| Operating Current (at 6V) | 140mA |
| Operating Current (at 12V) | 80mA |
| Output Power | <= 100mW |
| Module Slot Type | JR/Graupner Type |
The module supports PXX or CPPM, which are auto-detected.
The module operates within an input voltage range of 6 to 15 volts.
The model must be positioned at least 60 centimeters (two feet) above non-metal contaminated ground.
The system will detect the issue and provide sound warnings to alert the user.
