The Agilent Technologies 33220A is a 20 MHz synthesized function generator with built-in arbitrary waveform and pulse capabilities. Its combination of bench-top and system features makes this function generator a versatile solution for your testing requirements now and in the future.
The Agilent 33220A is a 20 MHz synthesized function generator with built‑in arbitrary waveform and pulse capabilities. It offers standard waveforms, high‑resolution arbitrary waveform generation, and flexible remote control via GPIB, USB, and LAN.

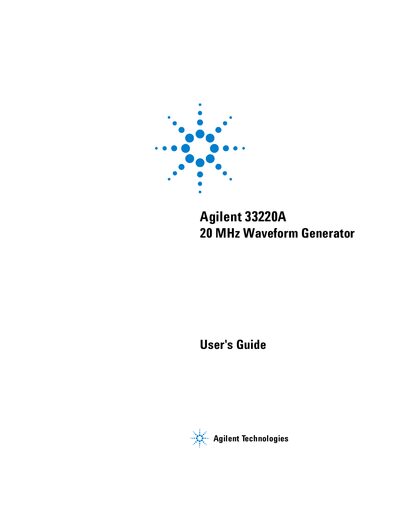

The guide covers quick start procedures, front‑panel menu operation, detailed feature descriptions, remote interface programming, error messages, application programs, a tutorial on signal generation, and a full specifications chapter.
| Standard waveform frequency range | 1 µHz to 20 MHz |
|---|---|
| Sample rate | 50 MSa/s |
| Amplitude resolution | 14 bits (including sign) |
| Minimum rise/fall time | 35 ns (typical) |
| Waveform length (arbitrary) | 2 to 64 K points |
| Arbitrary waveform frequency range | 1 µHz to 6 MHz |
It includes GPIB (IEEE‑488), USB, and LAN remote interfaces as standard.
The instrument provides 10 standard waveforms.
Arbitrary waveforms can be generated up to 6 MHz.
Press and hold down the key you need help with.
