RIGOL DS1000E, DS1000D Series Digital Oscilloscopes provide dual analog channels and 16-channel logic analyzers, with a maximum bandwidth of 100MHz and a real-time sampling rate of 1GSa/s. They feature rich triggering functions and automatic measurement capabilities, support waveform recording and playback, and come with the powerful UltraScope software for PC.

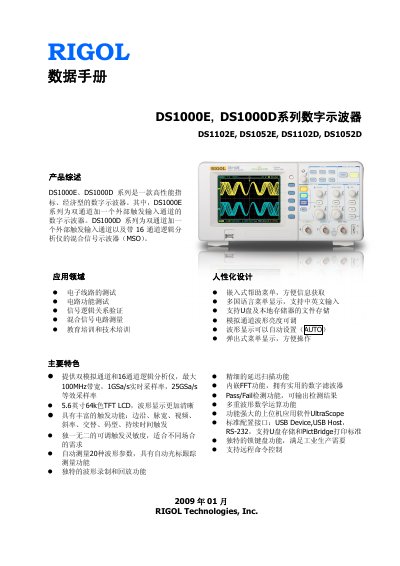

This document is a datasheet for the RIGOL DS1000E and DS1000D series of digital oscilloscopes. The DS1000E series provides two analog channels plus an external trigger input, while the DS1000D series adds a 16-channel logic analyzer for mixed-signal oscilloscope (MSO) functionality. Key features include a 5.6-inch 64k-color TFT LCD, rich trigger functions, automatic measurement of 20 waveform parameters, and an embedded FFT function. This manual is written in Chinese.
| Bandwidth | 100MHz (DS1102E/DS1102D), 50MHz (DS1052E/DS1052D) |
|---|---|
| Real-time Sampling Rate | 1GSa/s |
| Equivalent Sampling Rate | 25GSa/s |
| Channels | 2 Analog + 1 External Trigger (DS1000E), 2 Analog + 16 Logic (DS1000D) |
| Display | 5.6-inch 64k-color TFT LCD |
| Input Impedance | 1MΩ±2% with 15pF±3pF parallel |
| Max Input Voltage | 400V (DC+AC peak, 1MΩ input impedance) |
| Vertical Resolution | 8-bit |
| Dimensions | 303mm (W) x 154mm (H) x 133mm (D) |
| Weight | 2.3kg (without packaging) |
The DS1000E series has two analog channels plus an external trigger input, while the DS1000D series includes a 16-channel logic analyzer for mixed-signal measurement.
The maximum real-time sampling rate is 1GSa/s.
Yes, it features Pass/Fail detection that can output results via a port or screen display.
