RIGOL DG2000 series function/arbitrary waveform generators feature advanced DDS technology, which can generate accurate, stable, and low-distortion output signals. It has rich modulation capabilities, sweep output, and pulse train output.

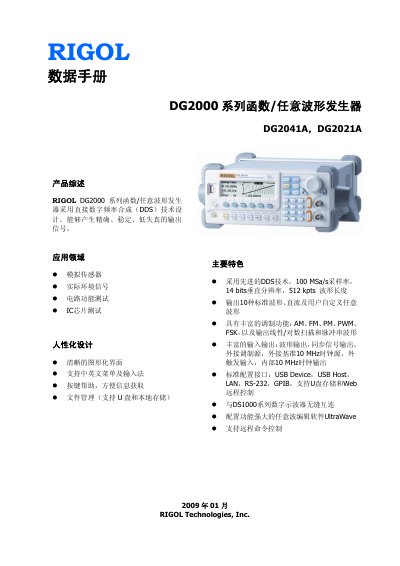

This datasheet describes the RIGOL DG2000 Series Function/Arbitrary Waveform Generators, specifically models DG2041A and DG2021A. Designed using Direct Digital Synthesis (DDS) technology, these instruments generate precise, stable, and low-distortion output signals. They support 10 standard waveforms, DC output, and user-defined arbitrary waveforms with a maximum length of 512k points and 14-bit vertical resolution. This manual is written in Chinese.
| Max Frequency (DG2041A) | 40 MHz |
|---|---|
| Max Frequency (DG2021A) | 25 MHz |
| Interface | USB, LAN, RS-232, GPIB |
| Power Supply | 100-240 VACrms |
The maximum output frequency for the DG2041A model is 40 MHz.
The maximum output frequency for the DG2021A model is 25 MHz.
