RIGOL DM3000 series digital multimeters are high-precision, multi-functional, and automatic measurement products. They have powerful measurement and mathematical calculation capabilities. They are suitable for applications in production line testing, power supply testing, automotive electronics testing, communication industry testing, biomedical electronic applications, and teaching and research.

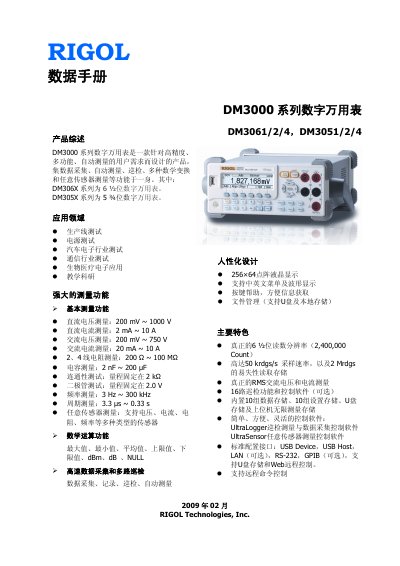

This document is a technical datasheet for the RIGOL DM3000 Series Digital Multimeter, specifically models DM3061/2/4 (6 ½ digit) and DM3051/2/4 (5 ¾ digit). Designed for high-precision, multi-function automatic measurement needs, these instruments integrate data acquisition, auto-ranging, patrol testing, various mathematical transformations, and arbitrary sensor measurements. The series is applicable to production line testing, power supply testing, automotive electronics, communication industries, biomedical applications, and educational research. This manual is written in Chinese.
| Resolution | 6 ½ digit / 5 ¾ digit |
|---|---|
| Sampling Rate | Up to 50 krdgs/s |
| Memory Capacity | 2 Mrdgs volatile readout storage |
| DC Voltage Range | 200 mV ~ 1000 V |
| AC Voltage Range | 200 mV ~ 750 V |
| Resistance Measurement | 200 Ω ~ 100 MΩ (4-wire) |
| Frequency Range | 3 Hz ~ 300 kHz |
The DM3000 series is designed for production line testing, power supply testing, automotive electronics, communication industries, biomedical applications, and educational research.
Yes, it supports voltage, current, resistance, and frequency types of sensors.
The instrument supports maximum, minimum, average, upper limit, lower limit, dBm, dB, and NULL measurements.
