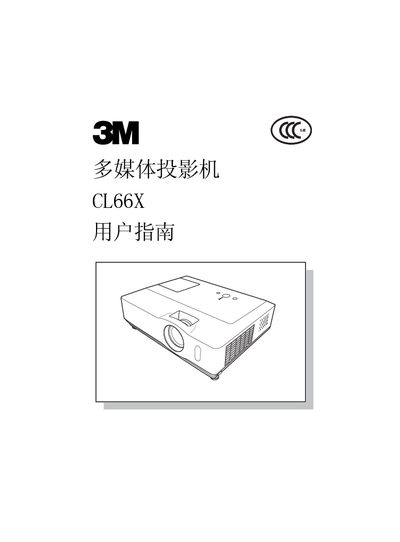

This document is a user guide for the multimedia projector CL66X, which includes the features and preparation, installation, and operation steps of the product.
This manual provides a complete guide to the 3M CL66X multimedia projector, covering its key features, preparation steps, and the components included in the packaging. Detailed descriptions of the projector body, control panel, rear panel, and remote control help users become familiar with the device.
Installation instructions, menu navigation, image adjustment, and safety warnings are presented along with maintenance procedures, fault diagnosis, and environmental requirements. The document also lists the technical specifications such as resolution, brightness, lamp type, and power consumption. This manual is written in Chinese.
| Resolution | 1024 × 768 pixels |
|---|---|
| Brightness | 3000 lumens |
| Contrast Ratio | 400:1 |
| Lamp Type | 220 W UHB |
| Power Consumption | 320 W |
| Input Voltage | AC 100‑120 V 3.5 A / AC 220‑240 V 1.5 A |
| Operating Temperature | 5 °C – 35 °C |
| Dimensions (W×H×D) | 340 mm × 100 mm × 270 mm |
| Weight | ≈3.5 kg |
| Audio Output Power | 7.0 W |
| Working Noise (normal mode) | 35 dB |
Use the power switch only when the normal shutdown procedure cannot turn the projector off; otherwise use the standby/on button.
A single use session should not exceed 3–4 hours.
The projector operates at 16 °C–29 °C (60 °F–85 °F), 10 %–80 % relative humidity, and up to 1828 m altitude.
It uses a 220 W UHB lamp.
