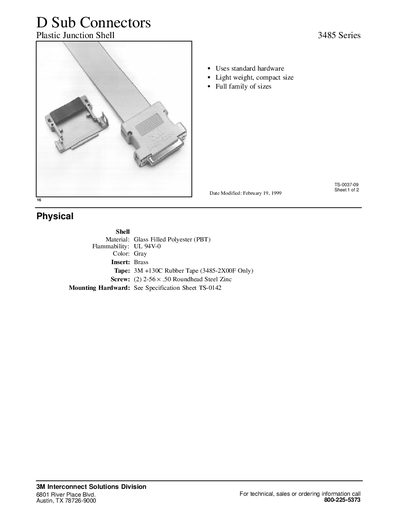

3M 3485 Series Plastic Junction Shell
The 3M 3485 Series D Sub Connectors are lightweight, compact plastic junction shell connectors available in a full family of sizes. They are designed for both round and flat cable applications and feature standard hardware for easy mounting.
The document lists key physical characteristics such as shell material, flammability rating, color, and insert material, as well as detailed dimensions, screw specifications, and ordering information for various connector configurations.
| Shell Material | Glass Filled Polyester (PBT) |
|---|---|
| Flammability | UL 94V-0 |
| Color | Gray |
| Insert Material | Brass |
| Tape | 3M +130C Rubber Tape (3485-2X00F Only) |
| Screw | (2) 2-56 x .50 Roundhead Steel Zinc |
The shell is made of glass filled polyester (PBT).
The connector has a UL 94V-0 flammability rating.
The mounting screw is (2) 2-56 x .50 roundhead steel zinc.
