3M DLP projector CD10X user manual

Q: How do I safely replace the projection lamp?

First unplug the power cord and allow the lamp to cool for about one hour. Then follow the lamp‑replacement procedure described in the manual.

Q: What safety warning is given for the built‑in laser?

Do not point the laser at eyes; it can cause permanent blindness.

Q: What are the recommended operating temperature limits?

The projector is designed to operate between 5 °C and 35 °C.

This document is a user manual for the DDLLPP projector, which introduces the features and usage of the projector.

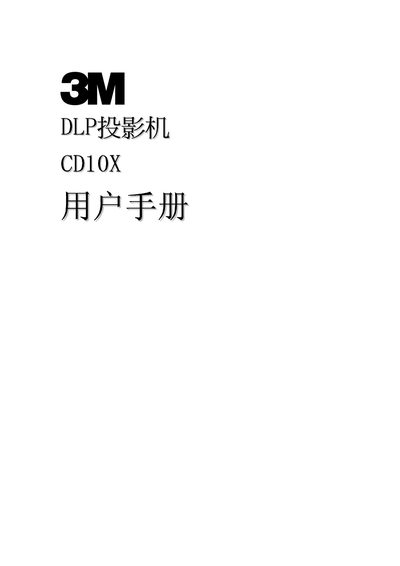

3M DLP projector CD10X user manual - cover page

Brand: 3M
Category: Projector
Document type: User Manual
Language: Chinese
Pages: 52
File format: PDF
File size: 2.3 MB
Published: 21 March, 2012
Updated: 28 September, 2023
MD5 checksum: C5F5154E61A8B7C323D5842C7A445F0C
PDF: 3M DLP projector CD10X user manual PDF

About this manual

This manual provides end‑users with step‑by‑step instructions for installing, operating and maintaining the 3M CCDD1100XX DLP projector. It includes safety warnings, a parts diagram, connection guides, menu navigation, lamp replacement, cleaning procedures and troubleshooting tips.

Technical specifications such as display type, resolution, brightness, power consumption and environmental disposal information are listed, along with regulatory certifications and recommended operating conditions. This manual is written in Chinese.

What's inside

Product Packaging List
Projector Parts Diagram
Installation and Operation
Connecting Input Devices
Adjusting Height, Zoom and Focus
OSD Menu Settings
Maintenance and Safety
Replacing the Projection Lamp
Cleaning the Projector
Troubleshooting and FAQ

Specifications

Display type	TI DMD 0.7‑inch
Resolution	XGA 1024 × 768
Color depth	16.7 million (24‑bit)
Weight	<1.1 kg (<2.5 lb)
Typical power consumption (normal mode)	190 W
Projection lamp power (normal mode)	156 W

Frequently asked questions

How do I safely replace the projection lamp?

First unplug the power cord and allow the lamp to cool for about one hour. Then follow the lamp‑replacement procedure described in the manual.

What safety warning is given for the built‑in laser?

Do not point the laser at eyes; it can cause permanent blindness.

What are the recommended operating temperature limits?

The projector is designed to operate between 5 °C and 35 °C.
