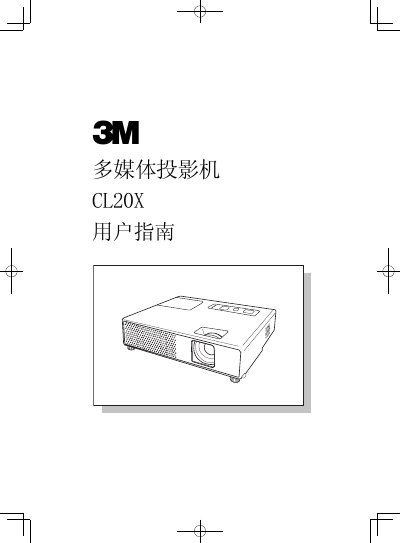

This manual introduces the features and usage of CL20X multimedia projector.
This manual covers the safety guide, unpacking checklist, and preparation steps for the CL20X projector. It explains each component, including the lens cap, filter cover, and control panel, and provides detailed installation instructions for both floor‑standing and ceiling‑mount setups.
The document then describes how to configure image settings, use the on‑screen menus, connect video and audio sources, and perform routine maintenance such as lamp replacement and filter cleaning. Technical specifications and troubleshooting tips are listed at the end. This manual is written in Chinese.
| Panel size (diagonal) | 1.6 cm (0.63") |
|---|---|
| Resolution | 1024 × 768 |
| Zoom lens focal length | F=1.8 ~ 1.9 |
| Focus distance | 0.8 m ~ 9.3 m |
| Projected image size | 0.8 m ~ 7.6 m (30" ~ 300" diagonal) |
| Lamp power | 160 W UHB |
| Contrast ratio | 500:1 |
| Brightness | 2000 lumens |
| Speaker output | 1.0 W stereo |
| Operating noise | 36 dB (normal mode) |
| Power consumption | 250 W |
| Operating temperature | 5 °C ~ 35 °C |
| Dimensions (W×H×D) | 274 mm × 59 mm × 205 mm |
