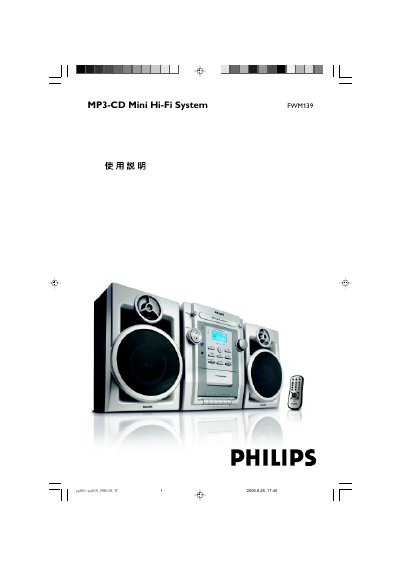

This manual covers everything you need to get the Philips FWM139 MP3‑CD Mini Hi‑Fi System up and running, from unpacking and connecting the speakers to using the remote control, CD/MP3 playback, radio tuning, and tape recording. Safety warnings, environmental information, and preparation steps are included to ensure proper installation.
Later sections detail basic operation, clock and timer settings, specifications, and a troubleshooting guide that helps resolve common issues such as disc errors, remote‑control problems, and audio quality concerns. This manual is written in Chinese.
| Amplifier output power | 2 x 20 W RMS (800 W PMPO) |
|---|---|
| Speaker impedance | 8 Ω |
| Signal‑to‑noise ratio (amp) | ≥ 62 dBA (IEC) |
| Frequency response (amp) | 63–16000 Hz, ±3 dB |
| Headphone impedance | 32 Ω – 1000 Ω |
| CD player frequency range | 63–16000 Hz |
| FM tuner range | 87.5 – 108 MHz |
| MW tuner range | 522 – 1710 kHz |
| Tape frequency response (type I) | 125 – 8000 Hz (8 dB) |
| Tape SNR (type I) | 35 dBA |
| Dimensions (W×H×D) | 190 x 292 x 182 mm |
| Power supply | 110–127 V / 220–240 V, 50/60 Hz |
| Weight (with/without speakers) | ≈4.9 kg / 2.3 kg |
Press the CLOCK/TIMER button and use the controls to adjust the hour and minute values shown on the display.
Press VOLUME 3/4 to increase or decrease the level; the display shows the current volume level.
Insert two R03 or AAA batteries following the + / – polarity markings in the battery compartment.
