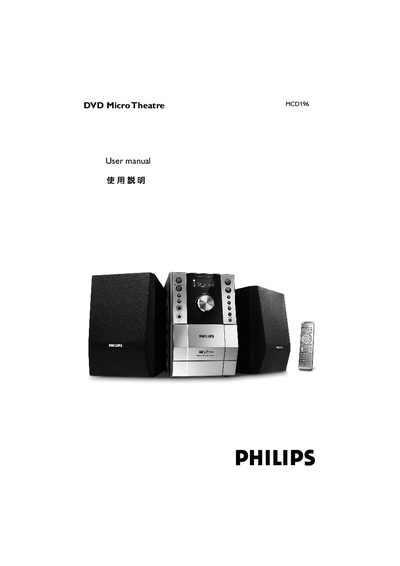

This is an MCD196 DVD micro theatre user manual
This manual explains how to install and use the Philips MCD196 DVD Micro Theatre, covering safety warnings, power‑selection, speaker placement and connection of audio/video sources. It also details the remote‑control functions, parental‑control settings and system menus.
Technical specifications, supported disc formats, accessory lists and a troubleshooting guide are included to help users maintain optimal performance and resolve common issues.
| Amplifier Output Power | 2 x 5 W RMS |
|---|---|
| Signal‑to‑Noise Ratio | ≥ 60 dBA |
| Frequency Response | 63 – 16000 Hz ± 3 dB |
| Speaker Impedance | 4 Ω |
| AUX Input Sensitivity | 0.5 V (max 2 V) |
| DVD Laser Type | Semiconductor |
| Disc Diameter | 12 cm / 8 cm |
| Video Decoding | MPEG‑2 / MPEG‑1 |
Set the voltage selection switch on the rear panel to the 110 V‑127 V position before turning the unit on.
Use the system menu to cancel the parental‑control level or adjust it to a different rating.
The standby timer automatically switches the system to standby after the preset time expires.
