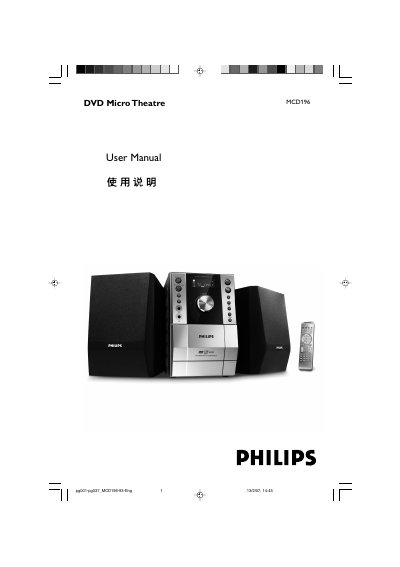

MCD196 DVD Micro Theatre User Manual
This manual covers all aspects of the Philips Micro Theatre MCD196 DVD player, including safety precautions, supported disc formats, and environmental information. It guides users through connecting speakers, antenna, TV, and other accessories, as well as configuring the clock, language, and video settings.
Detailed sections describe basic operation, disc playback, tape recording, system settings, technical specifications, troubleshooting, and a glossary of terms. The document also includes regulatory and warranty notices.
| Amplifier output power | 2 x 5 W RMS |
|---|---|
| Signal‑to‑noise ratio (audio) | ≥ 60 dBA |
| Frequency response (audio) | 63 – 16000 Hz, ±3 dB |
| AUX input sensitivity | 0.5 V (max 2 V) |
| Speaker impedance | 4 Ω |
| Laser type | Semiconductor |
| Disc diameter | 12 cm / 8 cm |
| Video decoding | MPEG‑2 / MPEG‑1 |
| Standby power consumption | ≤ 7 W |
| Dimensions (W×H×D) | 146 × 228 × 160 mm |
| Weight (with speakers) | 4.57 kg |
It can play DVD, VCD, SVCD, DVD+RW, CD, CD‑R/W, JPEG image discs, WMA files, and supported MP3‑CD formats.
Select the clock setup option and follow the steps shown under “步骤 1：设定时钟”.
The standby power consumption is 7 watts or less.
Connect the antenna as described in “步骤 3：连接天线”.
