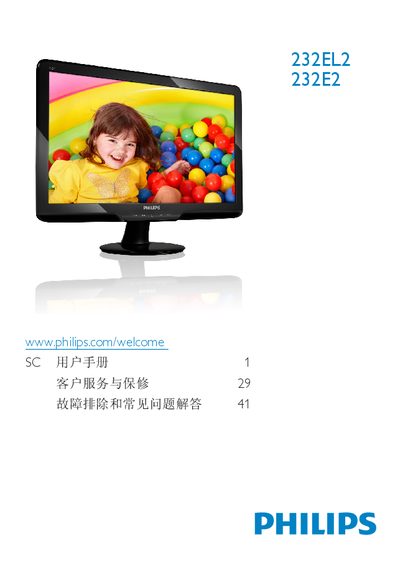

User manual of Philips 232EL2 monitor, introduces the safety measures, setup, product information, technical specifications, regulations, customer service and warranty, troubleshooting and FAQs of the monitor.
This manual provides safety guidelines, installation steps, and operating instructions for the Philips 23‑inch 232EL2/232E2 LCD monitor. It includes details on mounting, adjusting the OSD, and recommended usage conditions.
Technical specifications, warranty information, and a comprehensive FAQ section are also included to help users resolve common issues and maintain optimal display performance. This manual is written in Chinese.
| Panel type | TFT‑LCD |
|---|---|
| Backlight | CCFL (232E2), LED (232EL2) |
| Screen size | 23 inches (58.4 cm) |
| Resolution | 1920 × 1080 @ 60 Hz |
| Brightness | 300 cd/m² (232E2); 250 cd/m² (232EL2) |
| Contrast ratio (typical) | 1000:1 |
| Response time (typical) | 5 ms |
| Vertical refresh rate | 56 – 76 Hz |
| Color gamut | 16.7 million colors |
| Input connectors | DVI‑D (digital, HDCP), VGA (analog) |
| VESA mount | 100 × 100 mm |
