This document is a safety instruction for an indoor pan/tilt head. The device complies with Part 15 of the FCC Rules and should be operated according to the manual to avoid interference with radio communications. The warning message alerts users to the risk of electric shock and the presence of non-serviceable parts. The product has dangerous voltage and should be handled with caution.

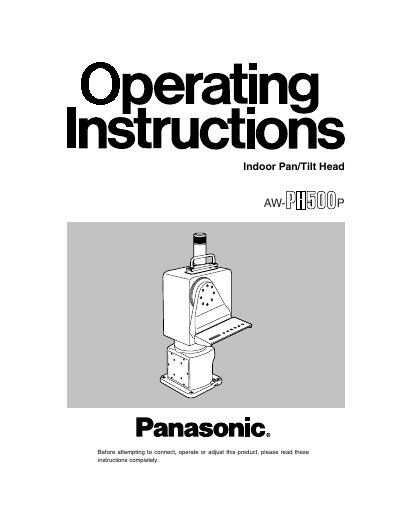

This document provides operating instructions for the Panasonic AW-PH500P indoor pan/tilt head, designed specifically for use with electronic news gathering (ENG) cameras. It details safety precautions, battery replacement procedures, and installation guidelines to ensure secure mounting of the device and supported camera loads.
The manual covers various control methods including direct operation via specific Panasonic control panels (AW-RP301, AW-RP501), multi-control setups using hubs like the AW-HB505, PC control via RS-232C interface, and contact-type controllers. It also explains how to attach the rotary arm, set up cable compensation circuits for long distances, and connect various cables for video signals, power, and camera controls.
| Tilt range (up) | 95 degrees upward |
|---|---|
| Tilt range (down) | 95 degrees downward |
| Maximum supported weight | 15 kg |
| Battery type | CR2032 |
| Operating temperature range | -20 °C to +60 °C |
| Maximum camera power supply | 2 A (DC 12 V) |
It is designed to be used with electronic news gathering (ENG) cameras.
No, direct control can only be exercised for the pan/tilt head; the camera itself cannot be controlled from that panel.
Up to five pan/tilt heads can be controlled directly through the AW-HB505 multi-port hub.
A maximum length of up to 300 meters is allowed for the cables between the pan/tilt head and controller.
