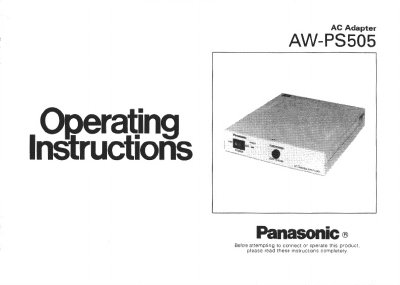

This document is the user manual for the Panasonic AW-PS505 AC adapter, designed specifically for the Multiport Hub AW-HB505. It provides instructions on connecting the adapter to the hub and operating the power switch and indicators.
The guide includes safety precautions, descriptions of the front and rear panel controls, connection diagrams, and technical specifications such as power output and operating temperature ranges.
| Input Power | 120 V AC 60 Hz 0.44A |
|---|---|
| Output Power | DC 12V 2.5A |
| Operating Temperature | -10°C to +45°C |
| Dimensions | 210(W) x 51(H) x 250(D) mm |
| Weight | 2.5 kg |
Use a 125 V, 3.15 A fuse to replace the power fuse.
The operating temperature range is -10°C to +45°C.
This adapter is for the Multiport Hub AW-HB505.
