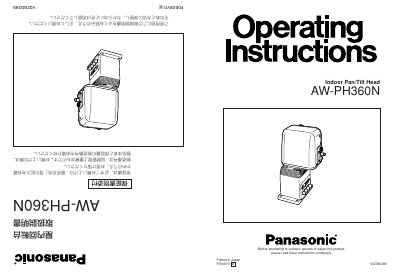

This document provides instructions for the use and adjustment of the Indoor Pan/Tilt Head AW-PH360N, as well as safety warnings.
The Panasonic AW-PH360N is a compact stand-alone type of pan/tilt head designed for indoor use. It is capable of rotating 95 degrees upward and downward, as well as 300 degrees horizontally. The unit can support a total weight of up to 8.8 lb (4 kg) for the camera and lens combined.
| Rotation (Vertical) | 95 degrees upward and downward |
|---|---|
| Rotation (Horizontal) | 300 degrees on the horizontal |
| Load Capacity | 8.8 lb (4 kg) |
| Operating Temperature | 14°F to 113°F (-10°C to 45°C) |
| Operating Humidity | less than 90% |
The pan/tilt head can be controlled using the controllers AW-RP301, AW-RP305, AW-RP501, AW-RP505, AW-RP605A, or AW-RP400.
No, the pan/tilt head cannot be powered by batteries or any other source of power; it requires the specific AC adapter AW-PS300A.
If an overload happens, the unit shifts to safe mode where neither pan nor tilt operate, and the tally lamp blinks.
