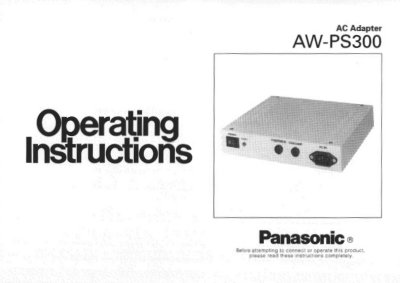

This document is the user manual for the Panasonic AW-PS300 AC Adapter. It is designed to supply power to the Pan/tilt head AW-PH300 and includes an AC outlet for halogen lamps that can be controlled from a compatible control panel. The adapter features an option switch and lamp control input terminals for integration with control systems.
The manual provides instructions on handling the unit, safety precautions, and detailed wiring diagrams for connecting the DC 15V output, lamp control, and option switch terminals to the Pan/tilt head. It specifies the maximum allowable cable length of 30 meters and lists the applicable wire gauges for solid and stranded wires.
| Option Switch Capacity | 120 V, 1A |
|---|---|
| DC Output Voltage | 15V |
| Halogen Lamp Power | 250 W to 500 W |
| Operating Temperature Range | -10°C to +45°C |
The maximum allowable cable length between the adapter and the Pan/tilt head is 30 meters.
You should connect a halogen lamp rated between 250 W and 500 W.
