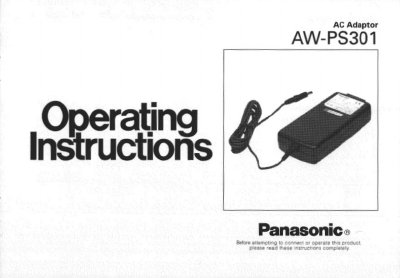

This document provides operating instructions for the Panasonic AW-PS301 AC adapter. It includes safety warnings regarding electric shock, proper handling of the unit to prevent damage from drops or moisture, and guidelines for cleaning the associated control panel.
The guide details how to connect the adapter by plugging the AC cable into an outlet and inserting the DC plug into the 12V input connector of the compatible control panel. It also lists technical specifications such as source voltage, power output, operating temperature range, and physical dimensions.
| Source Voltage | 120 V AC 60 Hz |
|---|---|
| Input Capacity | 20W |
| Power Output | 12V DC, 1.24A |
| Operating Temperature | 0°C to +38°C |
| Dimensions | 65(W) x 138(H) x 30(D) mm |
| Weight | 260 g (0.57 Ibs.) |
This AC Adapter is for the Pan/tiit Control Panel and Hybrid Control Panel, specifically models AW-RP301, AW-RP305, AW-RP501, and AW-RP505.
The unit should be used in an environment between 0°C and +38°C to avoid adversely affecting internal parts.
