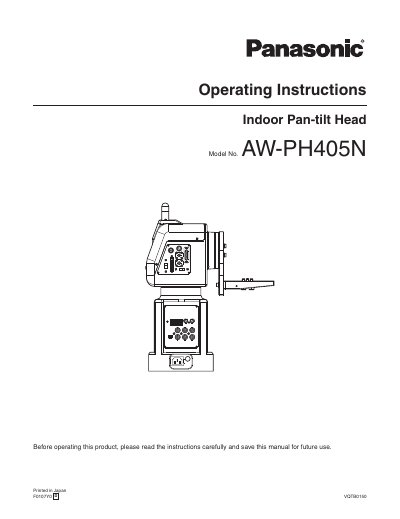

This document is an operating instruction manual for the Indoor Pan-tilt Head Model No. AW-PH405N. It provides information on how to use the product and includes safety precautions.
This manual provides operating instructions for the Panasonic AW-PH405N Indoor Pan-tilt Head. It details important safety precautions regarding electric shock, ventilation, and installation requirements to ensure safe operation.
The document covers assembly procedures, including mounting conditions for convertible cameras (AW-E350/E650/E655/E750/E860) and multi-purpose cameras (AK-HC1500G). It also explains how to set CPU circuit board switches and register preset memory data.
| Vertical rotation range | 300 degrees |
|---|---|
| Horizontal rotation range | 300 degrees |
| Maximum operation speed | 45 degrees per second |
| Maximum mountable weight | 15 kg (33.1 lbs) |
| Preset memory capacity | 50 positions |
No, the AW-PH405 cannot be controlled from the AW-RP301, AW-RP305, AW-RP501, or AW-RP505 controller.
The current rating of the LENS I/F (2) connector is 500 mA (max).
No, do not use the unit outdoors.
