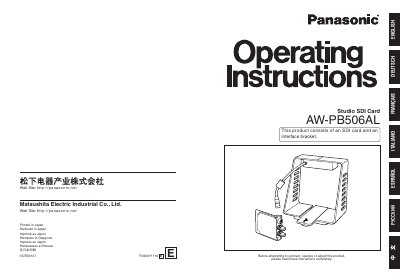

Panasonic AW-PB506AL Studio SDI Card and Interface Bracket Operating Instructions

This file is a AW-PB506AL Studio SDI Card user manual

Brand: Panasonic
Document type: User Manual
Language: English
Pages: 17
File format: PDF
File size: 1.2 MB
Published: 09 August, 2012
Updated: 30 September, 2023
MD5 checksum: C149038712E09FB84E944B05502C18AB
PDF: Panasonic AW-PB506AL Studio SDI Card and Interface Bracket Operating Instructions PDF

About this manual

The Panasonic AW-PB506AL is an accessory kit consisting of an SDI card and an interface bracket designed for use with specific Panasonic convertible cameras. When installed, it allows the camera to be used as a studio camera by supporting the connection of a viewfinder and/or inter-communications headset. The system provides two signal outputs compliant with the EBU Tech.3267-E standard.

What's inside

Configuration
Introduction
Characteristics
Precautions for use
Major operating controls
Installing the SDI Card
Interface bracket mountings

Specifications

Power requirements	DC 12 V (supplied from convertible camera)
Power consumption	15 W (When WV-VF65B, AW-VF80 is connected)
Ambient operating temperature	-10°C to +45°C
SDI output standard	EBU Tech.3267-E

Frequently asked questions

Which cameras are compatible with the AW-PB506AL?

It is designed for convertible cameras such as the AW-E350, AW-E650, AW-E655, AW-E750 and AW-E860.

Can the AW-PB506AL be installed on an AW-E300?

No, the AW-PB506A cannot be installed to the AW-E300 or other listed models.

What is the function of the EDH switch?

At the ENABLE setting, an EDH flag is added to SDI output.
