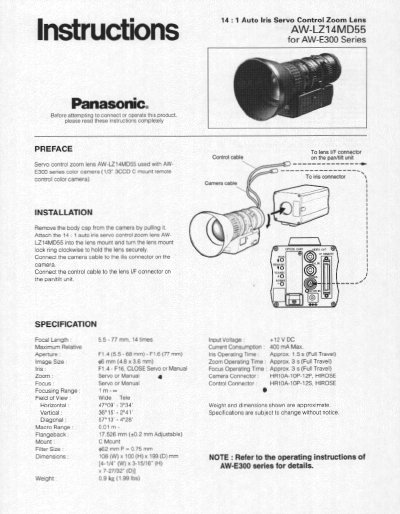

This document provides installation instructions for the Panasonic AW-LZ14MD55 14:1 Auto Iris Servo Control Zoom Lens. It details how to attach the lens to the camera and connect the necessary control cables to the pan/tilt unit. The lens is designed for use with AW-E300 series or similar 1/3" 3CCD C-mount remote control color cameras.
The document also lists technical specifications for the lens, including a focal length of 5.5-77mm, an aperture range of F1.4 to F16, and operating times for zoom and focus adjustments. It specifies the connector types required for the camera and control connections.
| Focal Length | 5.5 - 77 mm |
|---|---|
| Zoom Ratio | 14 times |
| Inlet Voltage | +12 VDC |
| Maximum Relative Current Consumption | 400 mA Max |
| Aperture | F1.4 (5.5 - 68 mm) -F16(77 mn) |
| Zoom Operating Time | Approx. 3 s (Full Travel) |
| Mount Type | C Mount |
| Weight | 0.9 kg (1.99 lbs) |
The lens has a focal length ranging from 5.5 to 77 mm.
It takes approximately 3 seconds for the lens to complete a full zoom travel.
