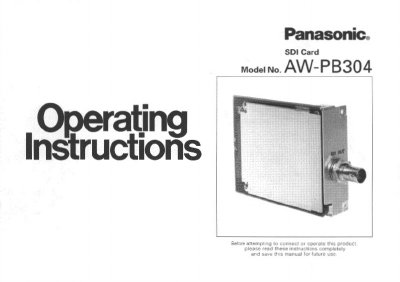

This document provides operating instructions for the Panasonic AW-PB304 SDI card. It details safety precautions, major operating controls including the SDI output connector, and step-by-step procedures for mounting the card into a compatible camera such as the AW-E600.
The guide also covers connection requirements, standard accessories included with the product, and technical specifications regarding power consumption, dimensions, and operating temperature ranges.
| Output | 270Mb/s component output (SMPTE 259M) |
|---|---|
| Source voltage | 12 V DC (supplied from camera) |
| Power consumption | 2W |
| Operating temperature | -10°C to +45°C (14°F to +113°F) |
| Dimensions | 21.5 (W) x 70 (H) x 111 (D) mm |
| Weight | 110g |
The unit operates within a temperature range of -10°C to +45°C (14°F to +113°F).
The source voltage is 12 V DC, which must be supplied from the camera.
It outputs a serial digital component signal at 270Mb/s compliant with SMPTE 259M.
