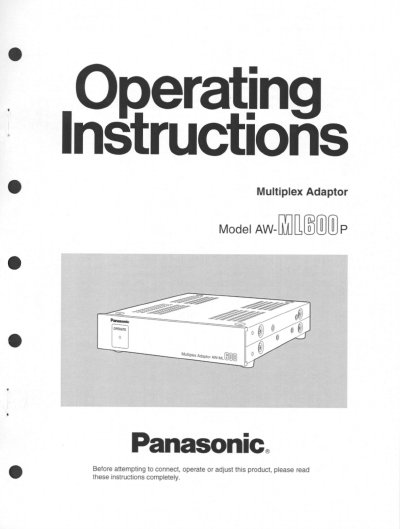

This document provides operating instructions for the Panasonic AW-ML600 Multiplex Adaptor. The device converts DC power from a Remote Control Unit (RCU) into 12V DC for the camera and pan/tilt head, while also multiplexing video, genlock, and control signals over a single coaxial cable.
The manual covers safety precautions, parts identification, required settings on internal boards of compatible RCUs, and detailed connection diagrams. It explains how to connect the unit to cameras (AW-E600, AW-E300), pan/tilt heads (AW-PH300A), control panels (AW-RP301), and RS-232C/RS-422 converters.
The unit and RCU can be connected using a single coaxial cable with a maximum length of 300 meters.
When controlling the pan/tilt head or camera via an external component using the RS-232C interface, a baud rate of 9600 bps is used.
