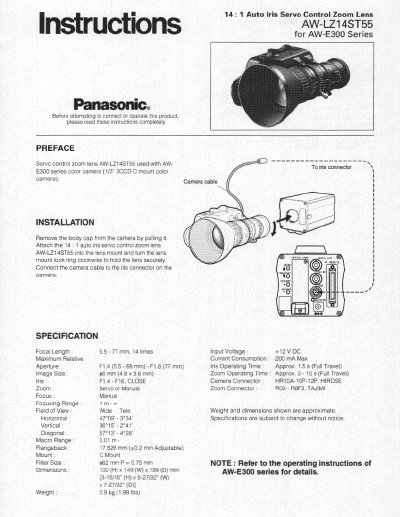

This document provides specifications and installation instructions for the Panasonic AW-LZ14ST55, a 14:1 auto iris servo control zoom lens. It is designed for use with the AW-E300 series color camera (1/3" 3CCD C mount color camera).
The lens features a focal length range of 5.5-77mm with a maximum relative aperture of F1.4 (5.5-68mm) to F1.6 (77mm). It supports both servo and manual iris control, as well as manual zoom and focus. The lens includes a focusing range of 0.07m and a flangeback of 17.526mm.
| Maximum Relative Aperture | F1.4 (5.5 - 68 mm) - F1.6 (77 mm) |
|---|---|
| Image Size | 6 mm (4.8 x 3.6 mm) |
| Iris Control | F1.4-F16, CLOSE |
| Flangeback | 17.526 mm (+0.2 mm Adjustable) |
| Weight | 0.9 kg (1.99 Ibs) |
| Iris Operating Time | Approx. 1.5 s (Full Travel) |
| Zoom Operating Time | Approx. 3 - 15 s (Full Travel) |
It is designed for use with the AW-E300 series color camera.
The lens has a 14 times zoom ratio.
