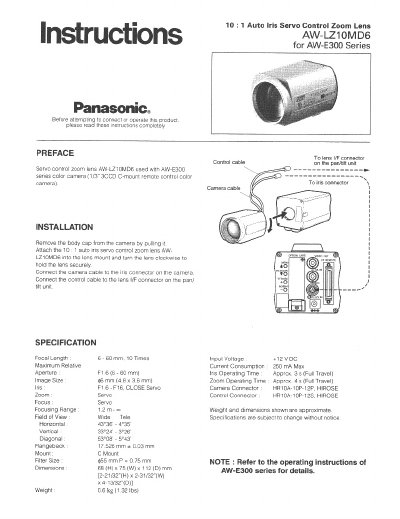

This document provides installation instructions for the Panasonic AW-LZ10MD6, a 10x auto iris servo control zoom lens intended for use with the AW-E300 Series color camera. The manual covers removing the body cap from the camera and attaching the lens securely to the mount.
| Focal Length | 6-60 mm, 10 Times |
|---|---|
| Maximum Relative Aperture | F1.6 (6-60 mm) |
| Image Size | 4.8 x 3.6 mm |
| Iris Range | F1.6-F16, CLOSE Servo |
| Zoom Type | Servo |
| Focus Type | Servo |
| Focusing Range | 12 m- oo |
| Mount Type | C Mount |
| Filter Size | 55 mm P = 0.75 mm |
| Weight | 0.6 kg [1.32 Ibs] |
This lens is intended for use with the AW-E300 series color camera.
The maximum current consumption is 250 mA.
The zoom operating time is approximately 4 seconds for full travel.
