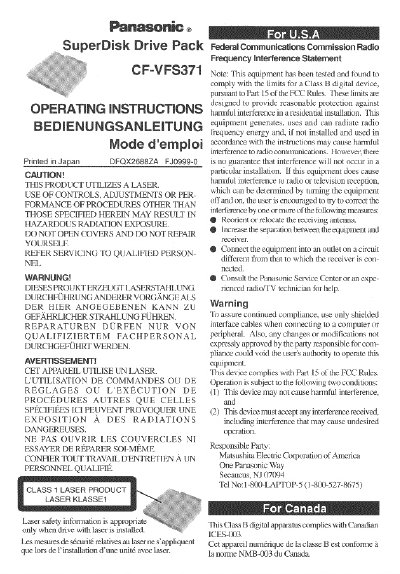

This document provides operating instructions for the Panasonic CF-VFS371 SuperDisk Drive Pack, designed for use with the Panasonic CF-37 notebook computer series. When installed in the multimedia pocket of the computer, the product functions as an internal SuperDisk drive.
The manual includes safety warnings regarding laser radiation and regulatory compliance statements for the USA and Canada. It also lists technical specifications such as operating voltage, data transfer rates, dimensions, and environmental conditions.
| Operating Voltage Range | DC 5 V + 0.25 V |
|---|---|
| Data Transfer Rate (120 MB mode) | 313 KB to 565 KB/s |
| Data Transfer Rate (2HD mode) | 110 KB/s (read), 37 KB/s (write) |
| Disk Rotation Rate | 720 r/min |
| Seek Time | 70 ms (average) |
| Interface Standard | Enhanced IDE (ATAPI) |
| Dimensions | 129.5 mm x 148 mm x 15 mm |
| Weight | Approx. 260 g |
The operating temperature range is 5°C to 35°C (41°F to 95°F) with 90% RH to 80% RH humidity.
No, do not open covers or repair yourself; servicing must be performed by qualified personnel.
