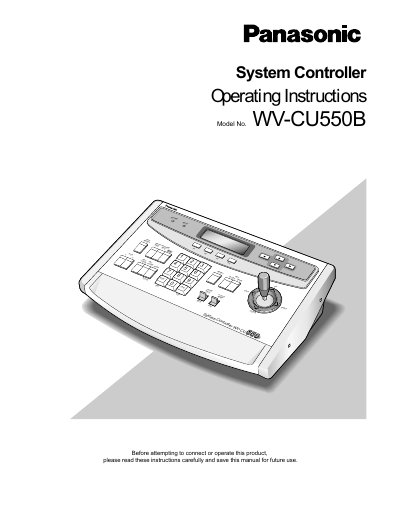

This document provides operating instructions for the WV-CU550B system controller, including major operating controls and installation details. It also includes features and precautions of the product.
The Panasonic WV-CU550B System Controller is designed for flexible control of video systems, capable of routing up to 128 cameras to 16 monitors. When combined with optional accessories like the WJ-SX550B Matrix Switcher and WJ-AD550 Extension Unit, it enables remote control of camera functions such as zoom, focus, and pan/tilt heads, as well as auxiliary equipment. The unit supports ergonomic design with function keys and can be configured for table-top or rack-mounting applications.
| Max Cameras | 128 |
|---|---|
| Max Monitors | 16 |
| Operating Temperature | -10°C - +50°C |
| Relative Humidity | below 90 % |
| Input Power | 120 V AC 60 Hz |
| Max Controllers per System | 8 |
The WV-CU550B allows for flexible control of up to 128 cameras.
Up to 8 WV-CU550B System Controllers can be connected in a system using standard RS-485 shielded 4-wire twisted pair cable.
