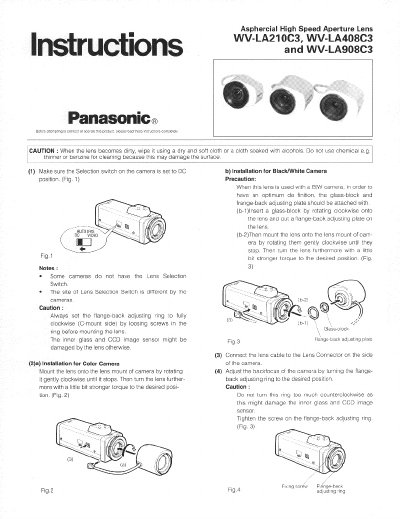

This document provides installation instructions for the Panasonic WV-LA210C3, WV-LA408C3, and WV-LA908C3 Aspherical High Speed Aperture Lenses. It covers preparation, mounting procedures for both color and black/white cameras, and cable connection. Special attention is given to the flange-back adjusting ring to prevent damage to the inner glass and CCD image sensor.
| Focal Length | 2.1mm |
|---|---|
| Maximum Aperture Ratio | 1:1.0 |
| Mount Type | CS-mount, 1"-32UN |
| Filter Size | M40.5 P=0.5 |
| Weight | 0.2 lbs (110g) |
| Ambient Operating Temperature | -30°C - +60°C |
Always set the flange-back adjusting ring to fully clockwise (C-mount side) by loosening screws in the ring before mounting the lens.
Use a dry and soft cloth or a cloth soaked with alcohol. Do not use chemical thinner or benzine.
Yes, when used with a B/W camera, the glass-block and flange-back adjusting plate should be attached for optimum definition.
