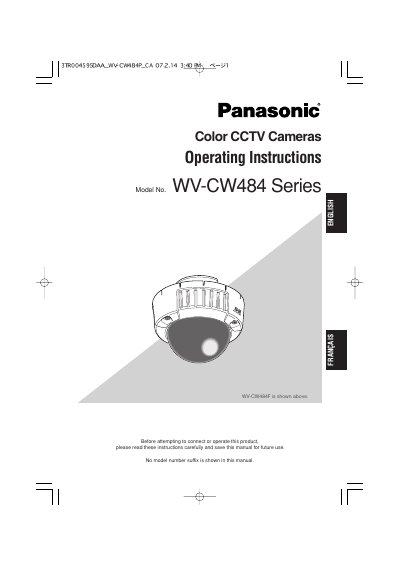

Panasonic WVCW484-MUL Manual

This document is the operating instructions for a color CCTV camera, describing the features and characteristics of the product.

Brand: Panasonic
Category: Monitoring Equipment
Document type: User Manual
Language: English
Pages: 96
File format: PDF
File size: 1.5 MB
Published: 08 August, 2012
Updated: 28 September, 2023
MD5 checksum: 3F1926BB98AA272FDB12F0686F8A5ABD
PDF: Panasonic WVCW484-MUL Manual PDF

About this manual

This manual provides operating instructions for the Panasonic WV-CW484 series of Color CCTV Cameras. The series includes models with x2 varifocal lenses (WV-CW484F, WV-CW484S) and optional lens configurations (WV-CW484FK, WV-CW484SK). Key features include Super-Dynamic 1/8 inch CCD technology, high sensitivity up to 32x FIX, and auto nighttime switching to Black and White Mode.

What's inside

Important Safety Instructions
Limitation of Liability
Features
Precautions
Lens Mounting
Installations
Image Adjustment
Connections
Troubleshooting
Specifications

Specifications

CCD Type	Super-Dynamic 1/8 inch CCD
Resolution	540 TV lines typical
Sensitivity (BAV mode)	0.16 lx at F1.4
Sensitivity Enhancement	Up to 32x FIX
Operating Temperature	-10°C to +50°C

Frequently asked questions

Does this camera have a built-in power switch?

No, this apparatus has no power switch and requires an external power-supply device.

What happens if the camera shoots a bright light source continuously?

The CCD color filter may deteriorate, causing discoloration that can remain even after changing directions.

Can this camera be used in vehicles?

No, the product is not designed for on-vehicle use due to vibration concerns.
