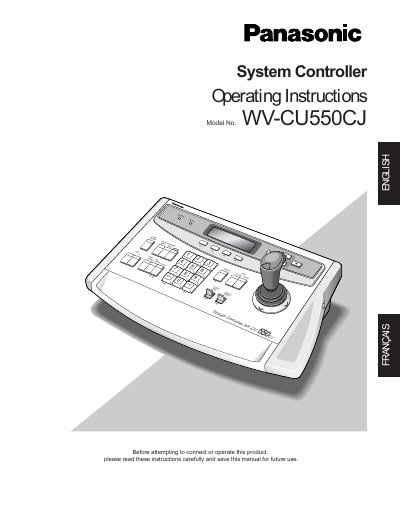

This manual introduces the basic functions and operating methods of the WV-CU550CJ System Controller.
The Panasonic WV-CU550CJ System Controller is designed for flexible control of video systems, capable of routing up to 128 cameras to any one of 16 monitors. When combined with optional units like the WJ-SX550C Matrix Switcher and WJ-AD550 Extension Unit, it enables remote control of camera functions such as zoom, focus, iris, and Pan/Tilt heads, as well as sequential switching sequences.
| Max Cameras | 128 |
|---|---|
| Max Monitors | 16 |
| Operating Temperature | -10°C to +50 °C |
| Humidity | below 90 % |
| Input Power | 120 V AC 60 Hz |
The WV-CU550CJ allows for flexible control of up to 128 cameras.
Yes, when used with Panasonic's Combination cameras, it can control camera functions such as zoom and focus.
Up to 8 WV-CU550CJ System Controllers can be connected in a system.
