This document is the operating instructions for the WV-BM1790 video monitor, providing detailed guidance on connecting and operating the product. It also includes important information such as recording the product's serial number and warnings about fire and electric shock.

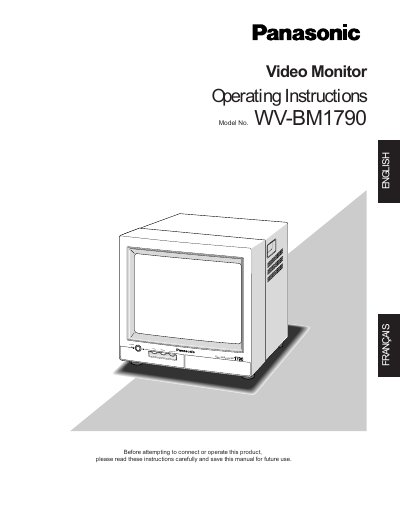

This manual provides operating instructions for the Panasonic WV-BM1790 Video Monitor. The device features a 413 mm diagonal viewing size with a horizontal resolution of 1,000 lines at the center. It is designed primarily for industrial applications and accepts standard CCIR/EIA input signals.
| Screen size (viewing) | 413 mm (16-1/4 inches) diagonal |
|---|---|
| Power source | 120 V AC, 60 Hz |
| Power consumption | approx. 27 W |
| Horizontal resolution | 1,000 TV lines at center |
| Video input type | EIA composite/75 Ohm or CCIR composite/75 Ohm |
| Operating temperature | -10°C to +50°C (14°F - 122°F) |
| Weight | 13.0 kg (28.6 lbs) |
Yes, up to 10 monitors can be connected in a series.
No, it is an optional accessory that must be purchased separately.
