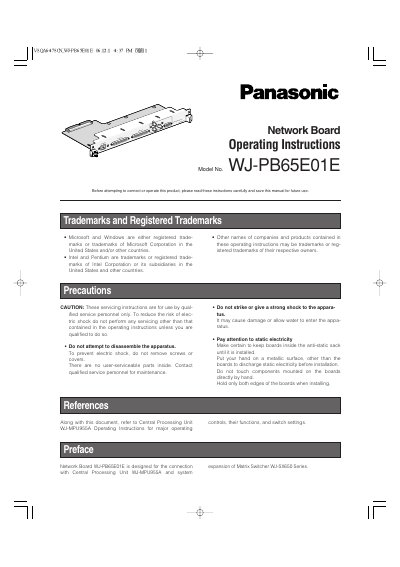

Panasonic WJ-PB65E01E Network Board Operating Instructions

About this manual

This manual provides operating instructions for the Panasonic WJ-PB65E01E Network Board. The board is designed to connect with the Central Processing Unit WJ-MPU955A to expand the system composition of the Matrix Switcher WJ-SX650 Series, allowing up to 512 cameras and 64 monitors to be connected via a network.

The document details the mounting procedure for the board into the OUT X-1 slot of the switcher chassis. It also explains how to update the firmware version using a PC with specific system requirements and software tools provided on the supplied CD-ROM.

What's inside

• Precautions
• Front View
• Board Mounting Procedure
• Firmware Update
• System Requirements
• Installation and Uninstallation
• PC Connection

Frequently asked questions

What system can the Network Board WJ-PB65E01E expand?

The board is designed for the expansion of the Matrix Switcher WJ-SX650 Series.

How many cameras can be connected using this board?

Up to 512 cameras become connectable with the network connection.

What is the default password for the firmware update software?

The factory default password is 12345.
