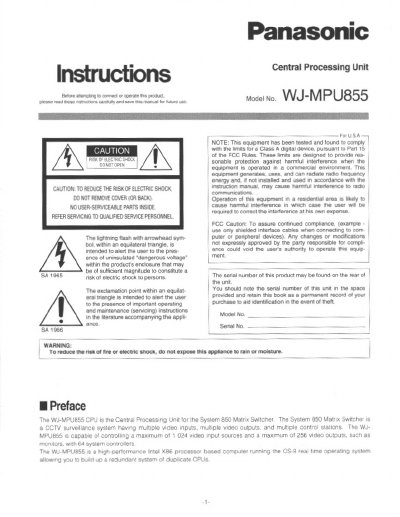

The document serves as an instruction manual for the WJ-MPU855 CPU, which acts as the central processing unit for the System 850 Matrix Switcher CCTV surveillance system. The device is a high-performance Intel X86 processor-based computer capable of controlling up to 1,024 video input sources and 256 video outputs.
| Power Supply | 120 V AC 60 Hz |
|---|---|
| Controllable Cameras | 1024 cameras (8 card cages) |
| Cross Point Controllable Cages | 1024 x 256 (32 card cages) |
| Controllable Monitors | 256 (2 card cages) |
| Ambient Operating Temperature | -10°C - +50°C |
The total number of system controllers connected via RS-485 and Ethernet is limited to 64.
The power switch is located underneath the front panel.
