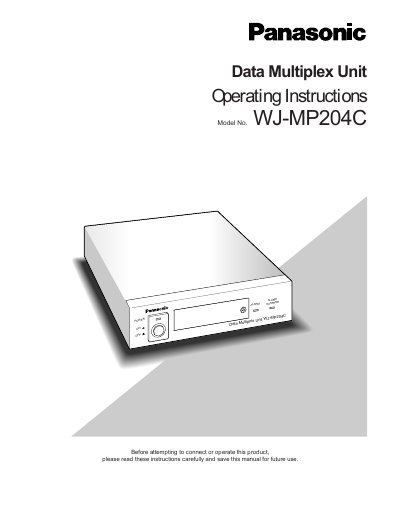

Panasonic WJ-MP204C Data Multiplex Unit Operating Instructions

About this manual

The Panasonic WJ-MP204C is a Data Multiplex Unit designed for surveillance systems. It multiplexes video signals with control data and VD2 sync into a coaxial cable, allowing the monitor and system controller to be located distant from the camera site. The unit supports two protocols: Panasonic Security Data (PS:Data) and the Camera Communication Protocol.

What's inside

• Features
• Precautions
• Major Operating Controls
• Installation
• Connection & Setting
• Setup Procedures
• Operation
• Specifications

Frequently asked questions

What are the operating temperature and humidity limits for this unit?

The appliance must be used at temperatures between -10°C and +50°C (14°F - 122°F) with a humidity below 90%.

What is the required input power source for this appliance?

The input power source for this appliance is 120 V AC 60 Hz.

How far must the appliance be placed from a wall to prevent overheating?

To prevent the appliance temperature from rising, place the appliance at least 5 cm (2 inches) away from the wall.
