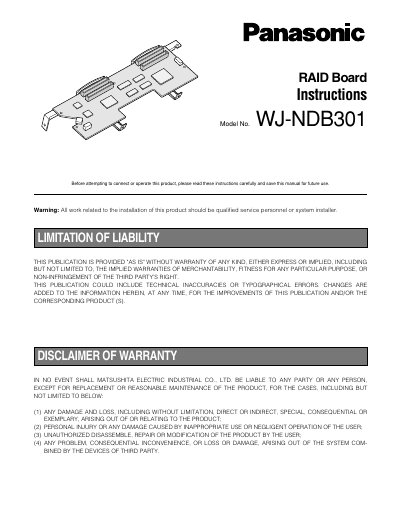

This manual introduces the connection and operation methods of the WJ-NDB301 RAID board
The document is an instruction manual for the Panasonic WJ-NDB301 RAID Board. This optional board enables the compatible Network Disk Recorder (WJ-ND300) to utilize a RAID 5 configuration, allowing data recovery even if one hard disk drive fails. The guide includes specific precautions regarding static electricity and compatibility.
| Compatible Device | WJ-ND300 Network Disk Recorder |
|---|---|
| RAID Level Support | RAID 5 |
| Power Consumption | 1.2A at +5 VDC |
| Operating Temperature | +5°C to +45°C (41°F to 113°F) |
| Dimensions | 31 mm x 109.5 mm x 35 mm |
| Weight | 200 g |
It enables the Network Disk Recorder to use the RAID 5 function, which can recover data even though one of the hard disk drives is failed.
No, it must be installed into a WJ-ND300 unit and cannot be used in other devices.
It is impossible to recover data if two drives are simultaneously damaged.
