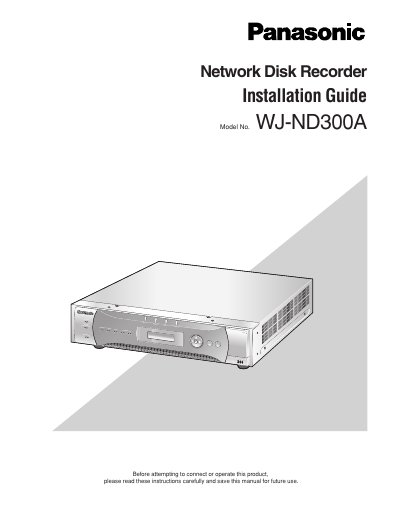

Panasonic WJ-ND300A Network Disk Recorder Installation Guide

About this manual

The document serves as an installation guide for the Panasonic WJ-ND300A Network Disk Recorder. It includes important safety instructions regarding electrical hazards, grounding requirements, and environmental conditions before attempting to connect or operate the device.

The manual covers rack mounting procedures, various connection types including cameras and PCs, and detailed steps for using the ALARM/CONTROL connector terminals. It also explains how to replace hard disk drives, power management operations, initial setup of network settings, key lock configurations, and HDD modes.

What's inside

• Important Safety Instructions
• Rack Mounting
• Connections
• How to Use the Terminals of the ALARM/CONTROL Connector
• How to Replace Hard Disk Drives
• Turn On/Off the Power of the Unit
• Operating the Unit for the First Time
• Set the Network Settings
• Key Lock Settings
• Troubleshooting

Frequently asked questions

Who should perform the installation of this product?

All work related to the installation of this product should be made by qualified service personnel or system installers.

What is the fuse rating for the mains plug?

An A5 amp fuse is fitted in the plug, and replacements must have a rating of 5 amp.

What color code applies to the mains lead wires?

Green-and-yellow is Earth, Blue is Neutral, and Brown is Live.
