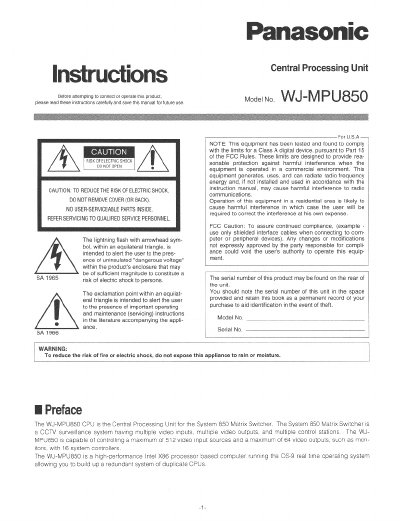

The WJ-MPU850 CPU serves as the Central Processing Unit for the System 850 Matrix Switcher, a CCTV surveillance system capable of controlling up to 512 video input sources and 64 video outputs. It is a high-performance Intel X86 processor-based computer running the GS-9 real-time operating system, designed to allow the construction of redundant systems with duplicate CPUs.
| Power Supply | 120 V AC 60 Hz |
|---|---|
| Controllable Cameras | 512 cameras (4 card cages) |
| Cross Point Controllable Cages | 512 x 64 (4 card cages) |
| Controllable Monitors | 64 (1 card cage) |
| System Controller Ports (Ethernet) | Maximum 16 controllers |
| System Controller Ports (RS-485) | Maximum 6 controllers |
| Ambient Operating Temperature | -10°C - +50°C (14°F - 122°F) |
| Dimensions | 430 (W) x 132 (H) x 350 (D) mm |
| Weight | 16 kg (35 lbs) |
The WJ-MPU850 is a computer running the GS-9 real time operating system.
Up to 16 controllers can be connected to the Ethernet port through a hub.
The factory default setting for the Redundant CPU selector is NO.
