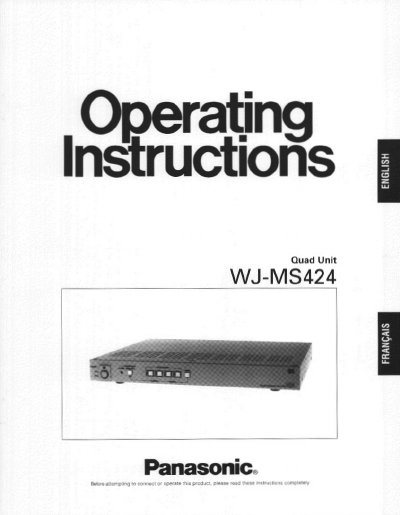

The Panasonic WJ-MS424 Quad Unit is designed for CCTV applications requiring the simultaneous display of up to four surveillance cameras. It supports most 2:1 interlace cameras without synchronization requirements and allows for black and white or full-color displays. The unit features simple front panel switch operation to select between quad and single camera display modes.
| Input Power | 120 V AC, 60 Hz |
|---|---|
| Operating Temperature | -10°C to +50°C |
| Operating Humidity | below 90% |
The unit should be used where the temperature is between -10°C and +50°C.
The unit should operate where the temperature is between -10°C and +50°C.
The input power source must be 120 V AC at 60 Hz.
Pressing the Menu button for approximately 2 seconds displays the setup menus.
