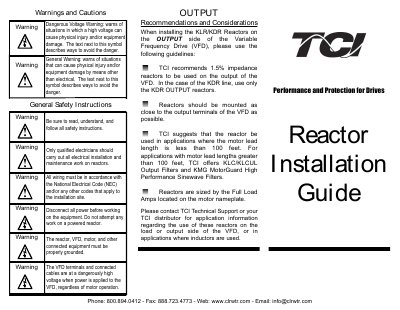

This document is about how to install KLR/KDR Reactors. It introduces the features and characteristics of these Reactors, and provides usage recommendations and precautions.
This document provides installation instructions and safety warnings for TCI KLR and KDR line reactors. It covers general safety precautions, such as disconnecting power before working on equipment and ensuring proper grounding. It also details specific recommendations for installing these reactors on the input side of a Variable Frequency Drive (VFD).
| Voltage Class | 600 Volt Class |
|---|---|
| Phase Type | 3-Phase |
| Ambient Temperature | 40° C |
| Current Rating | 200% rated current for 3 minutes |
| Certifications | UL Recognized, CE Marked, CSA Approved |
TCI recommends 1.5% impedance reactors to be used on the output of the VFD.
Reactors should be mounted as close to the output terminals of the VFD as possible.
A clearance of 3 inches on all sides of the reactors and its enclosure is recommended.
