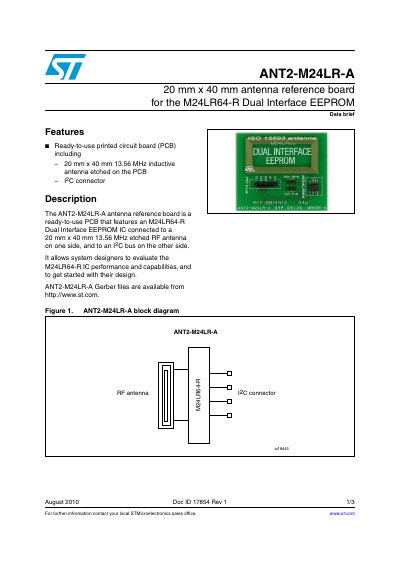

ANT2-M24LR-A is a 20mm x 40mm antenna reference board for the M24LR64-R Dual Interface EEPROM. It features a 13.56MHz inductive antenna and an I2C connector.
The ANT2-M24LR-A is a ready-to-use printed circuit board (PCB) designed to help system designers evaluate the performance and capabilities of the M24LR64-R IC. The board features an etched RF antenna operating at 13.56 MHz on one side.
It is a ready-to-use printed circuit board that includes an M24LR64-R Dual Interface EEPROM IC connected to an RF antenna and an I2C bus.
The board includes a 20 mm x 40 mm inductive antenna etched on the PCB.
The etched RF antenna operates at 13.56 MHz.
