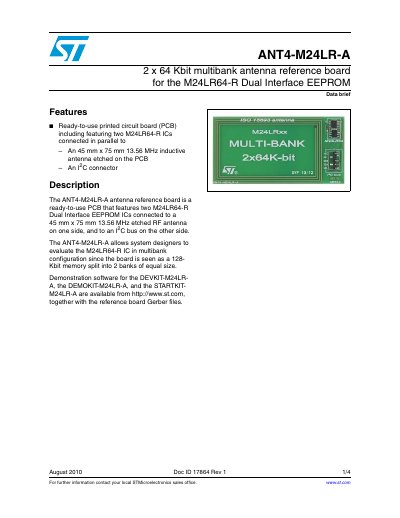

This document is a data brief of ANT4-M24LR-A, which introduces the functions and features of ANT4-M24LR-A.
The ANT4-M24LR-A is a ready-to-use printed circuit board (PCB) designed for evaluating the M24LR64-R Dual Interface EEPROM IC in a multibank configuration. The board features two M24LR64-R ICs connected in parallel, presenting itself as a 128-Kbit memory split into two banks of equal size.
| Memory Configuration | 2 xX 64 Kbit multibank antenna reference board |
|---|---|
| Compatible ICs | M24LR64-R Dual Interface EEPROM |
| Antenna Frequency | 13.56 MHz inductive antenna |
It is a ready-to-use printed circuit board that allows system designers to evaluate the M24LR64-R IC in multibank configuration.
The board is seen as a 128-Kbit memory split into two banks of equal size.
The etched RF antenna measures 45 mm x 75 mm and operates at 13.56 MHz.
