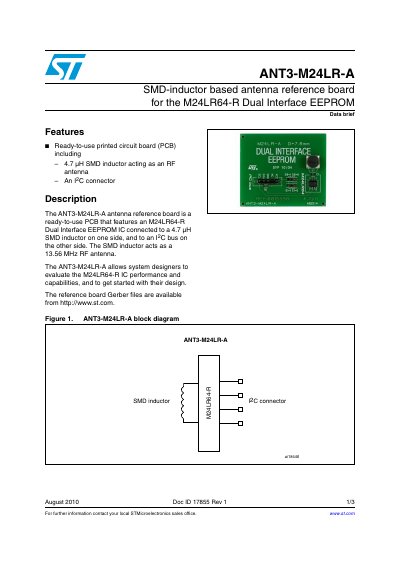

ANT3-M24LR-A is a SMD-inductor based antenna reference board from STMicroelectronics that supports M24LR64-R Dual Interface EEPROM.
The ANT3-M24LR-A is a ready-to-use printed circuit board (PCB) designed for the M24LR64-R Dual Interface EEPROM. It includes a 4.7 uH SMD inductor acting as an RF antenna and an I2C connector.
| Antenna Type | 4.7 uH SMD inductor |
|---|---|
| Frequency | 13.56 MHz |
| Compatible IC | M24LR64-R |
It is a ready-to-use PCB designed to evaluate the M24LR64-R Dual Interface EEPROM IC performance and capabilities.
A 4.7 UH SMD inductor acts as the 13.56 MHz RF antenna.
The board connects the M24LR64-R Dual Interface EEPROM IC to a 4.7 UH SMD inductor on one side.
