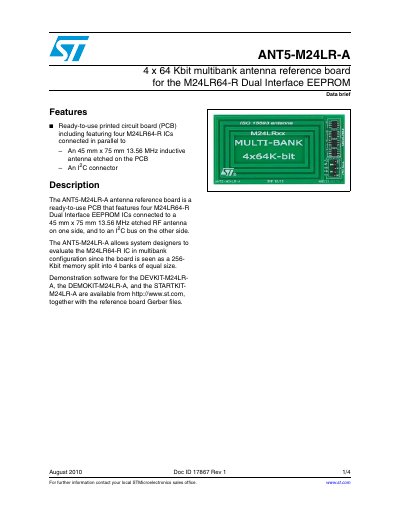

ANT5-M24LR-A is a 4 x 64 Kbit multibank antenna reference board for the M24LR64-R Dual Interface EEPROM
The ANT5-M24LR-A is a ready-to-use printed circuit board (PCB) designed for evaluating the M24LR64-R Dual Interface EEPROM in a multibank configuration. The board integrates four M24LR64-R ICs connected in parallel to a 45 mm x 75 mm 13.56 MHz etched RF antenna on one side and to an I2C bus on the other side. This setup allows system designers to view the board as a 256-Kbit memory split into four banks of equal size.
| IC Configuration | 4 x 64 Kbit multibank antenna reference board |
|---|---|
| Compatible IC | M24LR64-R Dual Interface EEPROM |
| Antenna Frequency | 13.56 MHz |
| Antenna Dimensions | 45 mm x 75 mm |
| Total Memory Capacity | 256-Kbit |
It is a ready-to-use printed circuit board that allows system designers to evaluate the M24LR64-R IC in a multibank configuration.
The board is seen as a 256-Kbit memory split into 4 banks of equal size.
The board features a 45 mm x 75 mm 13.56 MHz inductive antenna etched on the PCB.
